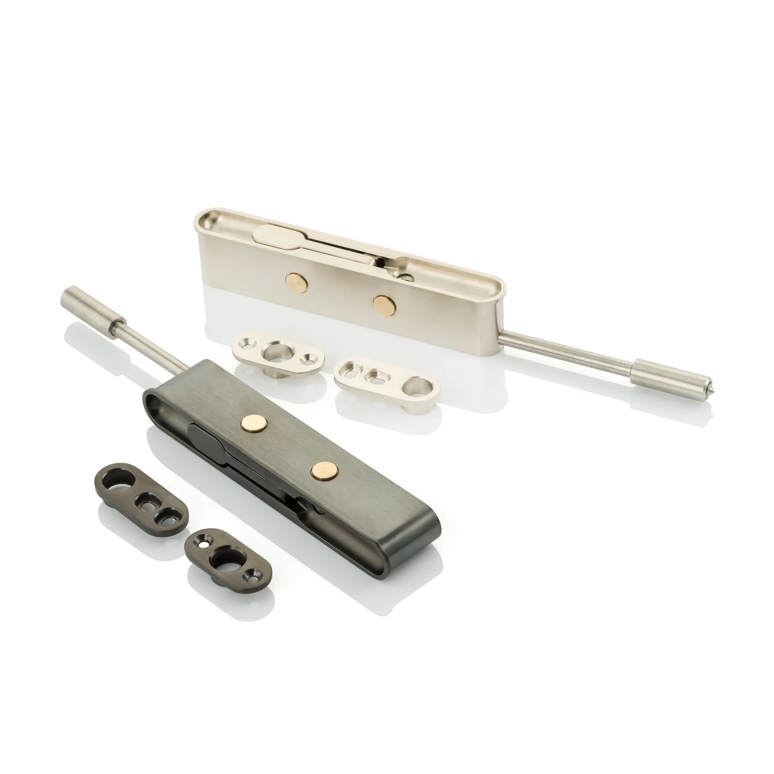

Designed with the hysteresis at the forefront this ultra smooth lever action flush bolt (Patent Pending) is designed to be recessed vertically into the end or face of a door and is usually used to secure the slave leaf of a double door set; enabling the main leaf to latch or lock into the slave leaf. The bolt is thrown and retracted by operating the small lever.

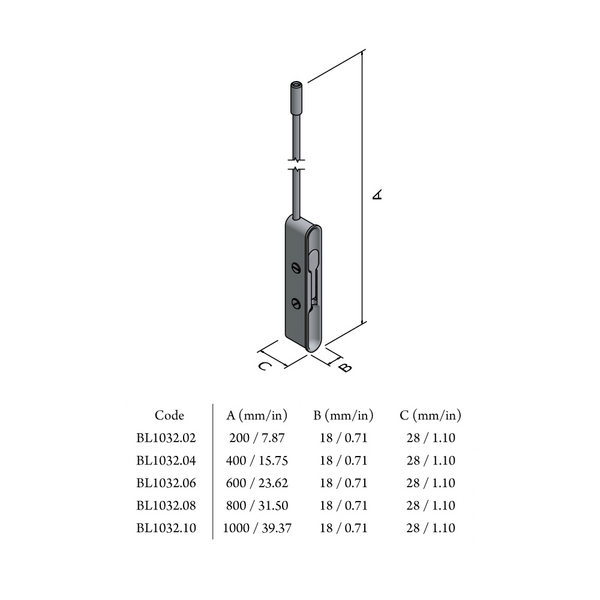

The main body is solid brass with rounded ends, to ensure ease of fitment with the width of the body at 18mm, its possible to produce the recess in one single simple cut which are complemented with striking curved apertures designed for absolute comfort whilst operating the solid brass lever paddle.
We recommend that two bolts are fitted per leaf, one at the top of the door and one at the bottom. A ‘receiver plate’ is supplied with each bolt, which can be used for a bolt being fitted to the top of a door. However, a socket (BL1035) is required for a bolt that is fitted at the bottom of the door and these need to be specified/purchased separately.
Watch the video below to explore the new flush bolt design.
With a mechanical lifetime guarantee.
BL1035
Sprung Loaded Floor Socket
BL1031
Rectangular Recessed Flush Bolt with Receiver Plate
BL1004
Sprung Loaded Floor Socket (to suit BL1001)
BL1001
Eclat Lever Action Recessed Bolt & Receiver Plate
