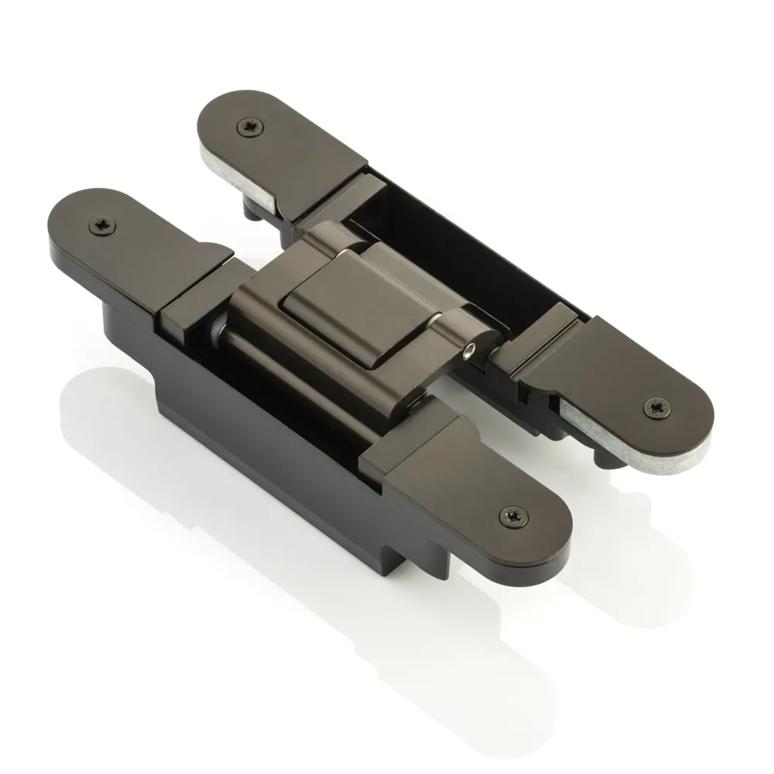

Tectus Asymmetric Hinge -3D Adjustment

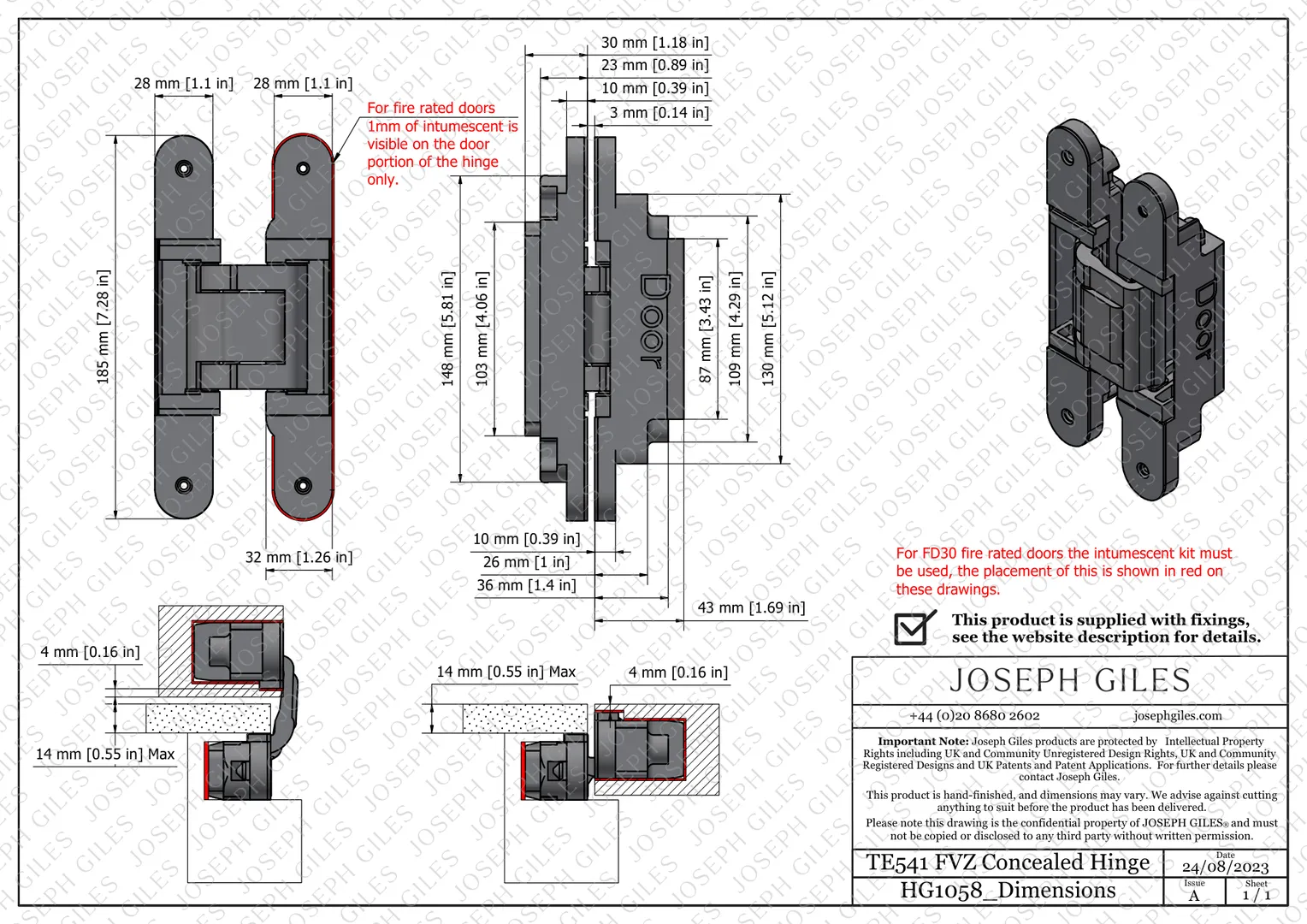

High-performance concealed Tectus hinge for flush-fitting doors where the door frame is set back from the face of the door by a maximum of 14mm, for example, where a layer of 12.5mm plasterboard with 1.5mm skim runs over the face of the door frame and finishes flush with the face of the door leaf. The concealed hinges are easily adjusted after they have been fitted to ensure the perfect alignment of the door and the frame.

The 3D adjustment allows the door to be adjusted in the following ways; Horizontal adjustment +3/-3mm, Height adjustment +3/-3mm, and compression adjustment +1.0/-1.0mm. Guaranteed for ten years and tested on a maximum adjusted door weight of 100kg (2 hinges).

The HG1058 is classified grade 12, and is Certifire approved for fire doors up to FD30 when used with an intumescent kit, the hinge is also CE rated, recommended for use on medium to heavy duty internal doors. The minimum door thickness they can be fitted on is 40mm thick, and the hinges will allow the door to open 180 degrees subject to the door detail.

Hinges are supplied as a single item with fixings.
